1. Introduction
With the development of science and technology and the progress of society, people’s demand for quality of life is getting higher and higher, especially for the smart home.People need more convenient, more relaxed, and more intelligent control.In recent years, with the rapid development of sensor technology, image acquisition equipment and computer technology, a kind of gesture recognition technology based on deep sensor has gradually entered people’s field of vision.In November 2010, Microsoft’s Kinect depth sensor provided hardware support for the design and development of smart home based on gesture recognition technology[1].Kinect provides a platform for development such as the Kinect SDK and the OpenNI SDK.OpenNI is a multilingual, cross-platform framework that defines the API for program development and implementation of natural interactions, and builds Bridges between sensors and middleware.NITE is the PrimeSense company in the middle of the OpenNI framework development software, a mediation system software and application software, which includes the image data used to analyze the depth development kit, such as Simple viewer, Closestpoint viewer, etc[2].Therefore, during the running of system, OpenNI communication standard is established between the different physical components, and NITE provides a development kit for analyzing and applying deep image data as well as a potential for Kinect to apply to gesture recognition technology.
Smart home is a highly efficient, comfortable, safe, convenient and environmentally-friendly living environment.Based on housing as a platform, it combines building, network communication, information appliances, and equipment automation.Intelligent household originated in intelligent building; the development is mainly divided into three stages: 1) The original with intelligent household electronic appliance application in the building and equipment improves the practicality and convenience of home appliance equipment.2) The development of communication technology and automation. The home system realizes the network connection, remote control and household system automation of the equipment.Literature[3] was designed and implemented a smart home control system based on embedded Linux; the system is integrated in a home server on embedded system board independence, but has family centralized monitoring and control equipment.Literature [4] connects all kinds of smart devices in the home with wireless Bluetooth technology, and users can directly control the smart device in real time by using the mobile phone client.3) Along with the development of the Internet of things, the wide application of wireless sensor network and information equipment, intelligent household formed with a large number of sensor network and calculation processing unit network system, and realized the household system of monitoring, entrance guard, information services, and intelligent control[5].Literature [6] designed a sensor network platform to accurately detect the activity of people in the indoor space, and then control the equipment according to the occupancy situation in the building[7].
In order to realize the smart home better body feeling effect, this paper studies a smart home control system based on Kinect and Arduino.Arduino adapted into the remote control, and used the NITE middleware execution gesture tracking and recognition. Then, through wireless communication, the collected data is sent to the Arduino to realize the action control to the remote control and lighting.NITE middleware is used to perform bone tracking and obtain the user’s limbs to identify the user.The user height and weight data obtained by 3D point cloud data and gravity sensor are used to measure the user’s BMI.The system designed is to improve the original equipment man-machine interactive stiffness and control object single faults, achieve more natural human-computer interaction, and improve the “smart” composition of smart home.
2. System Structure and Working Principle
Use Kinect to get the human data and convert it to a control command. The computer sends commands to the Arduinomicroprocessorthrough the XBee wireless communication module, and the Arduino processes the received data to control the remote controller, the light and the gravity sensor.The system consists of the host and the machine, and the overall structure of the system is shown inFigure 1.The host is used for the collection of human motion information, and then the image processing is carried out to identify the human body features and movements. The human motion information is wirelesslytransmitted to the machine.

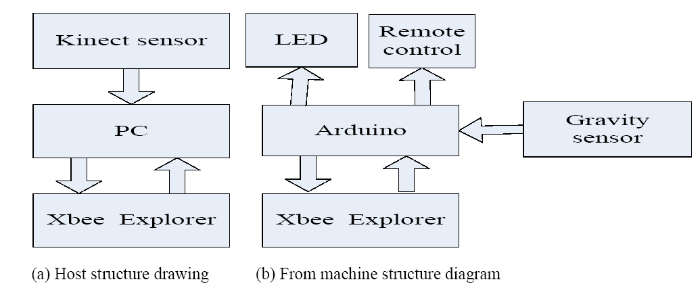

Figure 1.
Figure 1.
General structure diagram of the system
The host system is composed of PC, Kinect sensor and XBee wireless communication module. The slave control system is composed of Arduinomicroprocessor, XBee wireless communication module, TV remote controller, LED lamp (red, green, blue and white), gravity sensor and so on.The information is processed in real time from the machine, and each module is controlled to complete the corresponding instruction.
3. System Hardware Design
3.1.Kinect Sensor
The system body sensing device applied in this system is a motion-sensitive Kinect produced by Microsoft.The Kinect is composed of color cameras, infrared devices, microphone arrays, logic circuits, motors [8]. Kinect has three cameras; the middle is RGB color camera, and the left and right sides are 3D deep sensors, which are made up of infrared transmitters and CMOS infrared cameras. They can acquire color and depth images at the same time. The microphone array consists of four built-in microphones. It is the first system in the world to combine RGB images and deep images with reasonable prices.Unlike 2D cameras, the low-cost Kinect can capture human skeleton information and scene depth images, and can generate point cloud data, as well as voice recognition.The Kinect point cloud image uses color spectra to detect the human body and can effectively protect privacy.The Kinect sensor is equipped with an active light source that is independent of external lighting conditions. When the Kinect uses infrared light, it can extract deep images in dark rooms[9], as shown in Figure 2.

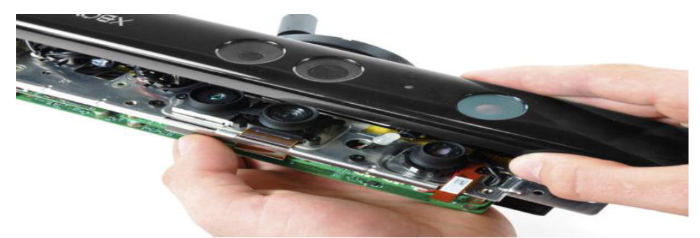

Figure 2.
Figure 2.
From left to right: Kinect infrared transmitter, RGB color camera, LED and infrared projector
The Kinect’s core technology is the ability to get in-depth data from the target and have a skeletal tracking function. At present, it can track 20 skeletal points in the human body, and can locate the skeletal position of up to six people. Using this technology, alot of people have carried out studies of human body recognition [10-11], gesture recognition [12-14], and face recognition [15].
3.2.Arduino Microprocessor
The collection control module of the system adopts Arduino as the core of the control module and realizes the function of the design by carrying different sensors and controllers. Arduino mainly consists of two parts: the hardware part is the Arduino circuit board, and the Arduino IDE, which is a program development environment that is stored in a computer.Arduino is an open source hardware development platform with 8 ATMEGA328 microprocessor as the core, providing 14 digital input and output pins and 6 analog input pins, as shown in Figure 3.It can support USB data transmission, and users can connect different electronic devices on the I/O ports [16-18].The Arduino is able to collect weight data by carrying gravity sensors, and by controlling lights and remote controls to feed back and influence the environment.

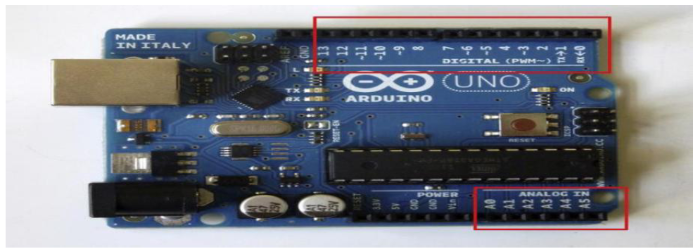

Figure 3.
Figure 3.
Arduino digital pins (top) and simulated pins (bottom)
3.3. XBee Wireless Communication Module
When human movement isdetected, the computer receives instructions and transfers it to the controller by wireless communication.The wireless communication is the most important part of the smart home system. The XBee adopted by this system is a wireless communication module produced by Digi company. It is based on IEEE 802.15.4; the working voltage is 3V. Only when the XBee module is connected to the XBee Explorer USB (emitter) and the XBee Explorer (receiver) can you start the device [19].We have also created a wireless connection which communicates with the Arduino through the module’s built-in serial communication protocol, as shown in Figure 4.

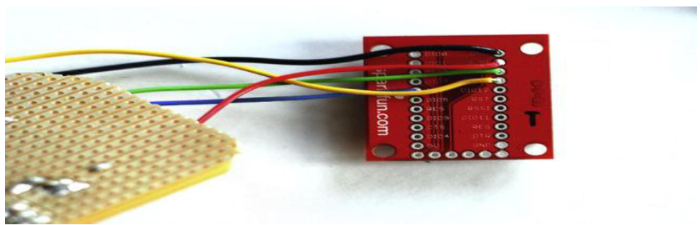

Figure 4.
Figure 4.
Connects the XBee Explorer to Arduino
4. System Design and Experimental Results
4.1. Kinect Controlling TV
4.1.1. Working Principle
The system sets the motion of a quick wave to the left and the right to switch the channel, and through drawing a circle by hand to achieve the continuous volumecontrol.The premise of this function is to connect the TV remote control channel +, channel -, volume + and volume - to the Arduino port to complete a modified remote control.NITE’s gesture recognition function and the circular probe inside the NITE is used to realize the recognition of a wave motion and the effect of smoothing the volume.
4.1.2. Experimental Design
First, the creation, deletion of the hand point and function updates are triggered by the NITE.After the hand point is created, set the flag to true so that hand tracking is achieved.Determine the position of the hand through the parameters of the function are called through NITE, and then clear the list and add the first point.
Second, realize the recognition of simple wave gestures.You can detect the switching potential of the channel by simply analyzing the current horizontal movement speed of the hand.Extract the current and previous hand positions from the parameter, measure their differences on the X-axis, and set a threshold to distinguish the normal movements of the hands and wave instructions.
Third, when the main loop enters the volume control mode, it will draw the latest round that NITE detects with radius, midpoint and Angle variables.
4.1.3. Experimental Results
Wave your hands in front of the Kinect and a red dot will appear.This means that NITE has recognized the hand and started tracking it. Users can also see a long track of hand movements, as shown in Figure 5.

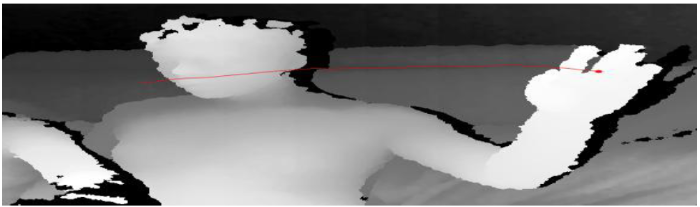

Figure 5.
Figure 5.
Hand tracking
Wave in the horizontal direction and send the channel switch to Arduino. As long as the switch channel action is identified, the program will draw an arrow with the text, as shown in Figure 6.

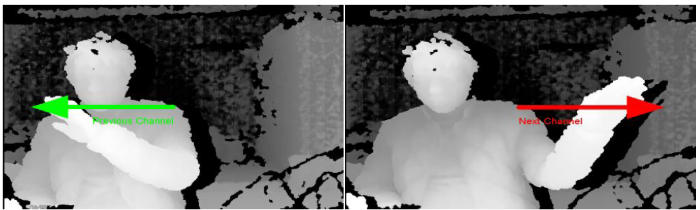

Figure 6.
Figure 6.
Gestures from one channel to the next
As long as you draw a circle with your hand, you will see the volume control knob on the screen. It’s time to check whether the circle is larger than the previous one (clockwise) or small (counterclockwise). The former will send the “increase volume” signal to Arduino;otherwise, the “lower volume” signal is sent, as shown in Figure 7. If a user wants to stop the volume control, just move his/her hand out of the circle drawing in the air.

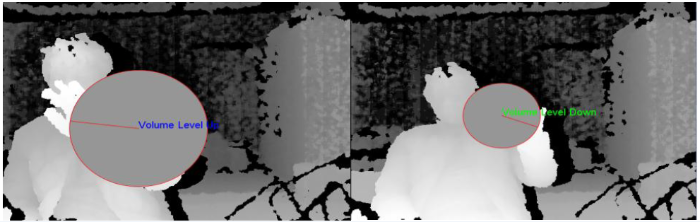

Figure 7.
Figure 7.
Raise and lower the volume with volume control knob
4.2. Controlling the Lights by Kinect
The system contains a lighting function that regulates the status of lamps and lanterns with the body posture. It also perceives the location of the user in the room and increases the brightness of the user’s nearest lamp accordingly.
4.2.1. Attitude Tracking
The Kinect tracks the user’s skeleton to determine the location of the user. Simple-OpenNI is a multilingual, cross-platform framework that defines the API for program development and implementationof natural interactions, and builds a bridge between sensor and middleware communication.If the human body appears in the field of vision of Kinect, it will get its center of mass.By standingin front of Kinect and posingfor a few seconds, the user skeleton will appear on the screen and follow every action of the user until the user disappears from the screen, as shown in Figure 8.

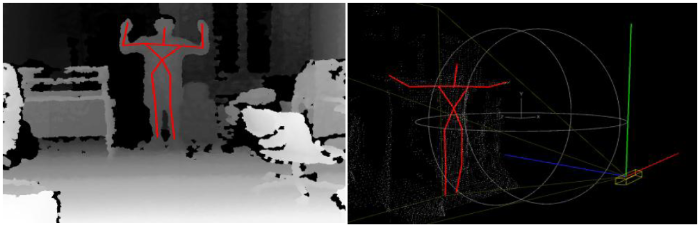

Figure 8.
Figure 8.
User skeleton
4.2.2. Create Lamps
After the implementation of attitude tracking, the location of lamps is determined by the method of body gesture recognition.Stand in the position of the lamp. Use both hands to hold up the position of 200mm above the head to tell the system that there is a lamp at this position; the lamp is not allowed to be created within 200mm.
To complete this gesture recognition, you need to extract both hands positions and head position from the parameter and measure their differences on the Y-axis. When the difference between the position of the two hands and the value of the head position on the Y-axis is greater than the set threshold, the lighting instruction is triggered, as shown inFigure 9.

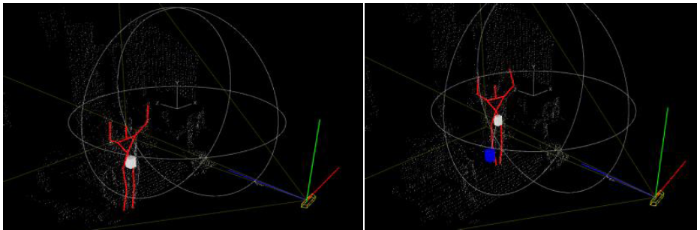

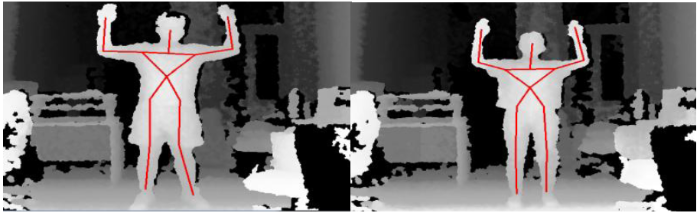

Figure 9.
Figure 9.
Creates lamps by body posture
4.2.3. Lighting Control
When the user points his right arm to the lamp, he can adjust the color and the brightness of the lamp through the distance between the left hand and the head.
To identify whether the arm is stretched, you need to define the vector of the right forearm and right arm. These two vectors are obtained by defining the vector of the shoulder position minus the vector that defines the position of the elbow and the vector of the elbow minus the vector of the hand.
Through these vectors, it is possible to detect whether the Angle between two vectors is less than the threshold set in advance. If the right arm is detected in the straightening state, the Angle between the right arm vector and the Angle of the right hand pointing to the lamp are detected. If the Angle is less than the preset threshold, the selection of lamps is realized. Access to user space position tocheck whether the distance between the lamp and the lamp is less than a specific threshold to adjust the white LED canimprove the luminance function of the nearest lamp, as shown in Figure 10.

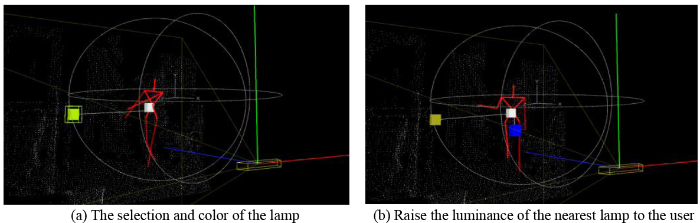

Figure 10.
Figure 10.
User control of RGB values of lamps and lanterns
4.3. Biometric Identification of Kinect
BMI reflects the relationship between height and weight, and is closely related to the body fat. It is an important indicator reflecting the body. International, it is usually taken as a measure of the degree of standard human body fat [20].
Usethe Kinect skeletal tracking and point cloud shading function to acquire the user’s identity and height, and receivethe weight value transmitted by Arduino.Human body mass index (BMI) isgenerated. The basic function of the program is that when the user enters the Kinect field of vision, the system starts to track the user. From the user’s point cloud, it finds the highest and lowest point as well as the height of the body. At the same time, the skeleton of the user finds the limb proportions.The data will be served as a fingerprint preservation, along with the physical characteristics of user data. If the proportion of the existing user’s limbs is similar to one of the fingerprints, the user can identify the user and retrieve the data from the current fingerprint. Once you get all the skeletons and height data, you can stand on the weight toget your BMI.
4.3.1. User Recognition
Through skeletal tracking, the real coordinates of the entire user’s skeletal joint are stored, which is used to calculate the width of the arm, forearm, thigh, calf and shoulder.The similarity between two user skeleton data is measured by multidimensional vector subtraction and vector based Cartesian coordinate system [21], as shown in Equation (1):
Subtraction of two three dimensional vector, as shown in Equation (2):
Subtraction of n dimensional vector, as shown in Equation (3):
By taking the array of user data as a multidimensional vector, the subtraction of the two vectors is used to get the difference between the length of the two users, as shown in Equation (4):
Once all length differences are obtained, you need to find out with the closest user compare with the current user, and retrieve the user data from the selected file and update the user name and date of birth at the same time. This identifies the identity of the user’s, as shown in Figure 11.
Figure 11.
Figure 11.
Comparison of users
4.3.2. Height Measurement
When the user’s weight was collected, the system obtained the scene image and transformed it into a three-dimensional point cloud image. The human point cloud image was divided and processed, and the user's height was measured using the user point cloud. The scenario is enabled by NITE to separate the background from the foreground user and find the highest and the lowest point from the user’s point cloud. Subtract the Y coordinates to get the actual height of the user, as shown in Figure 12.

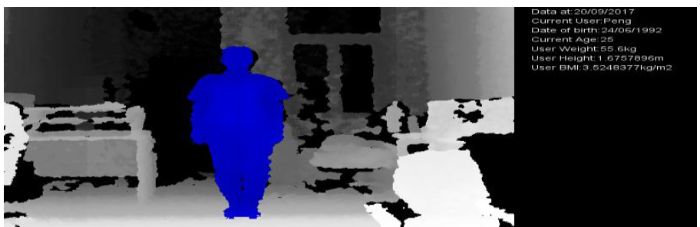

Figure 12.
Figure 12.
The user height from the highest point and lowest point
4.3.3. Weight Measurement
Weight measurement is carried out by using a gravity sensor in the Arduino to collect data and process data; the wireless communication module is used to transmit to the PC terminal.
This design uses the resistance strain type gravity sensor HX711; the principle is shown in Figure 13. The resistance strain sensor is made up of elastic sensing element, resistance strain gauge, compensation resistor and shell. It can be designed into many structural forms according to the specific measurement requirements. Resistance strain weighing sensor principle is: elastomers(elastic element, sensitive beam) produce elastic deformation under the action of external force, the resistance strain chip pasted on the surface (conversion element) also accompanied the deformation, strain deformation, and its resistance will change (increase or decrease). Measuring the corresponding circuit converts the resistance change into electrical signals (voltage or current), thus completing the force will transform into electrical signals in the process of [22]. The stress analysis as shown in Figure 14.

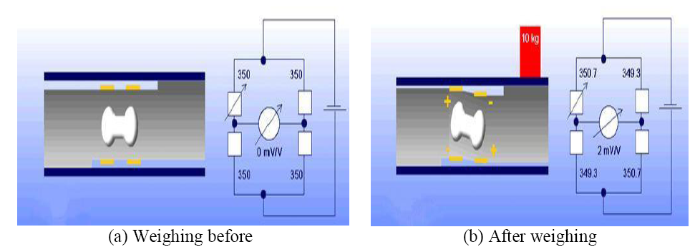

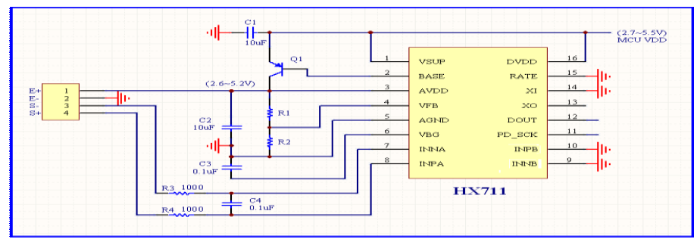

Figure 13.
Figure 13.
Schematic diagram of pressure sensor AD conversion module
Figure 14.
Figure 14.
Force analysis
5. Conclusion
This project is based on Microsoft access sensors. It integrates the advanced Internet technology, tries a new way of smart home control, realizes the 3D skeletal tracking and performs custom gesture recognition.This paper can be regarded as a general introduction to the construction of intelligent residential appliances, and can also be applied to any household electrical appliances.In addition, using Kinect’s biometric Identification Technology can also build a system which can display all the chart of height and weight information timely, through the size of different people to evaluate the user’s physical health and to categorize them.Another example is a home security system based on user identification.
Acknowledgements
The authors wish to express their gratitude towards the financial supports from Science and Technology Department of Liaoning province (No. 20170052), Education Department of Liaoning province (No. 2017J047) and China Science Technical Department (NO. 2017YFC0821003).
